Description
Delco Remy 12V 10 Tooth 38MT Starter Motor
- May Be New Take-Off
-
Starter - 38MT, Motor Assembly
-
Delco Remy P/N: 8200077 / DR 8200077 / DR8200077
-
Cummins P/N: 3965281
-
Supersession P/Ns: ABP N15R 38MT10T1, Reman DR 8300024
-
Model: 38MT
-
Rotation Direction: Clockwise
-
Pinion Gear Tooth Quantity: 10
-

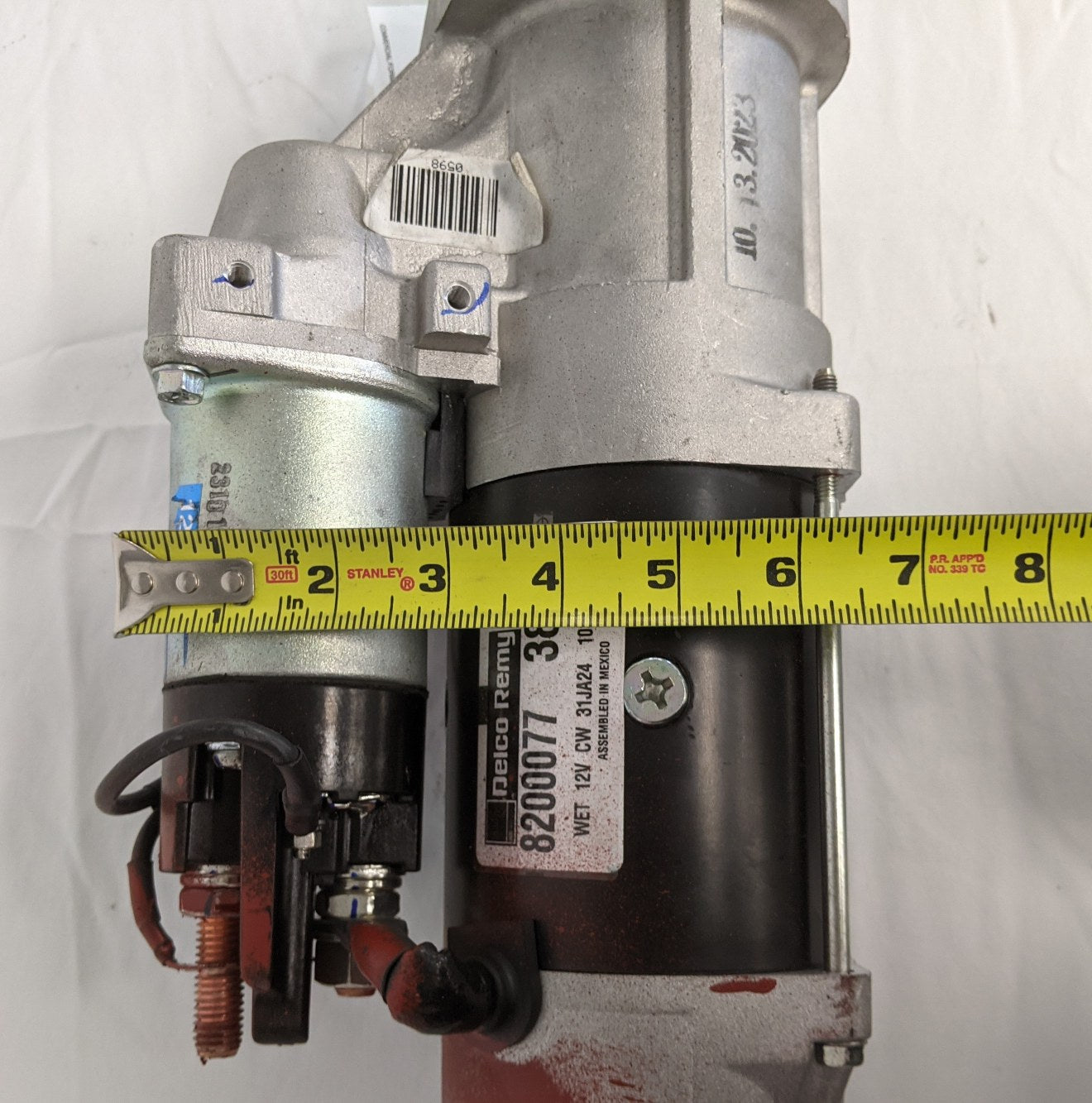

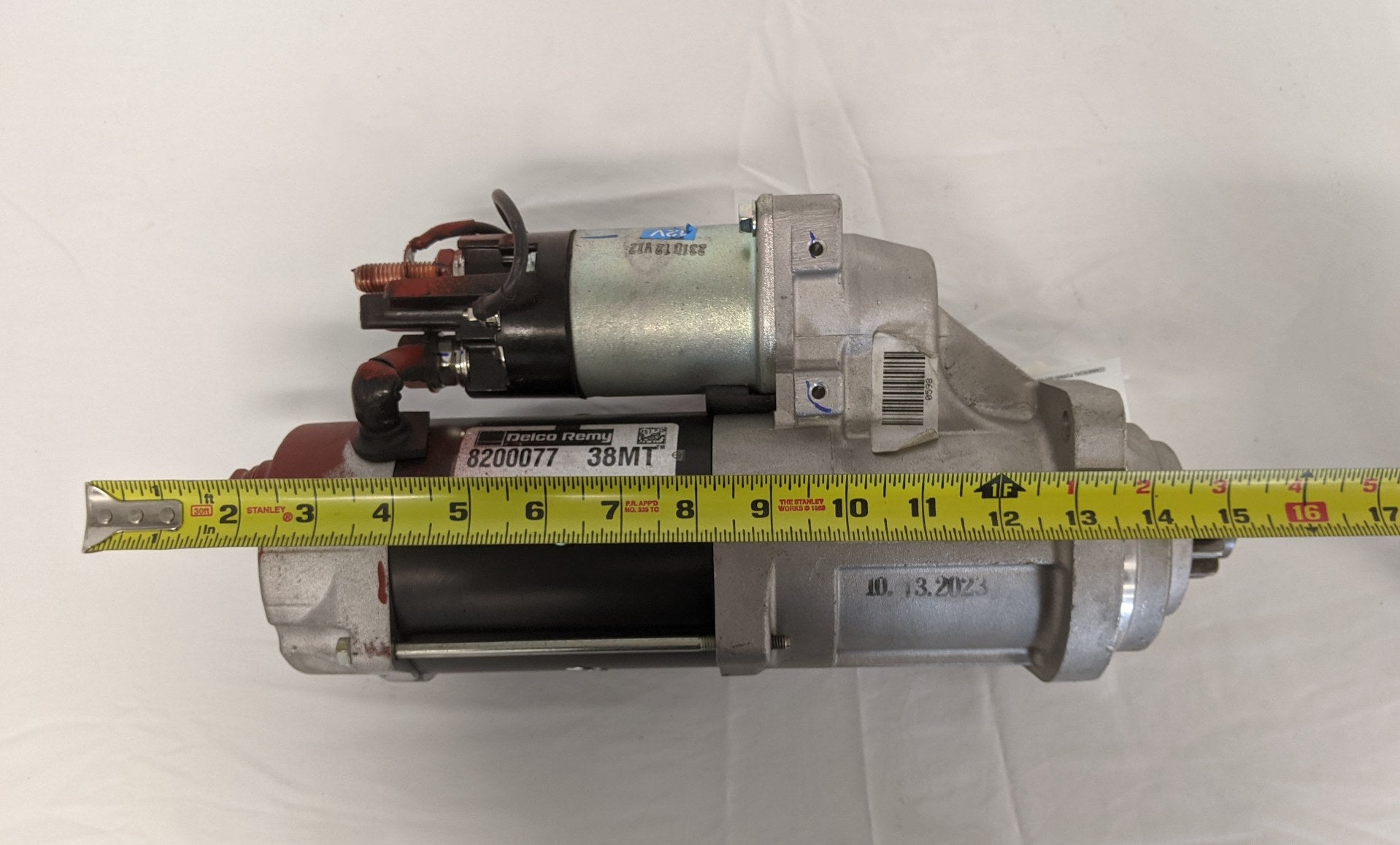

Mounting Flange To End Of Case: Approx. 13.76" (349.50 mm)
-
Mounting Flange To Pinion End At Rest: Approx. 1.83" (46.50 mm)
-
Solenoid Position Angle: 315 Degree
-
Voltage: 12 V
-
Power Rating: 4.30 kW
-
Nose Cone Material: Aluminum
-
Housing Material: Steel
-
Compatible w/ But May Not Be Limited To Some Models/Years Of The Freightliner M2, Please Verify Fit To Your Truck Make/Model/Year
-
Link To Manufacturers Website: Delco Remy Link
-
May Have Cosmetic Blemishes
-

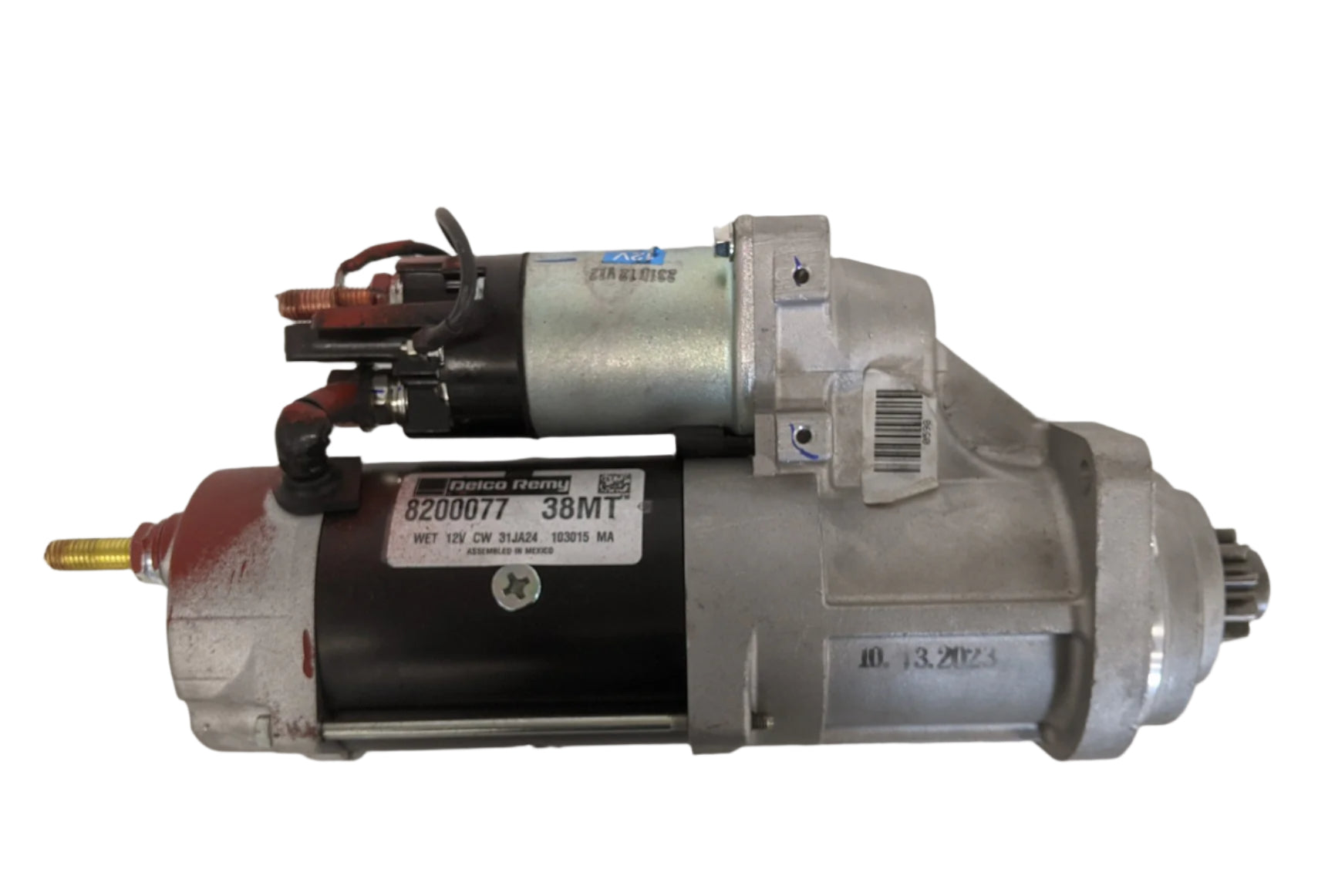

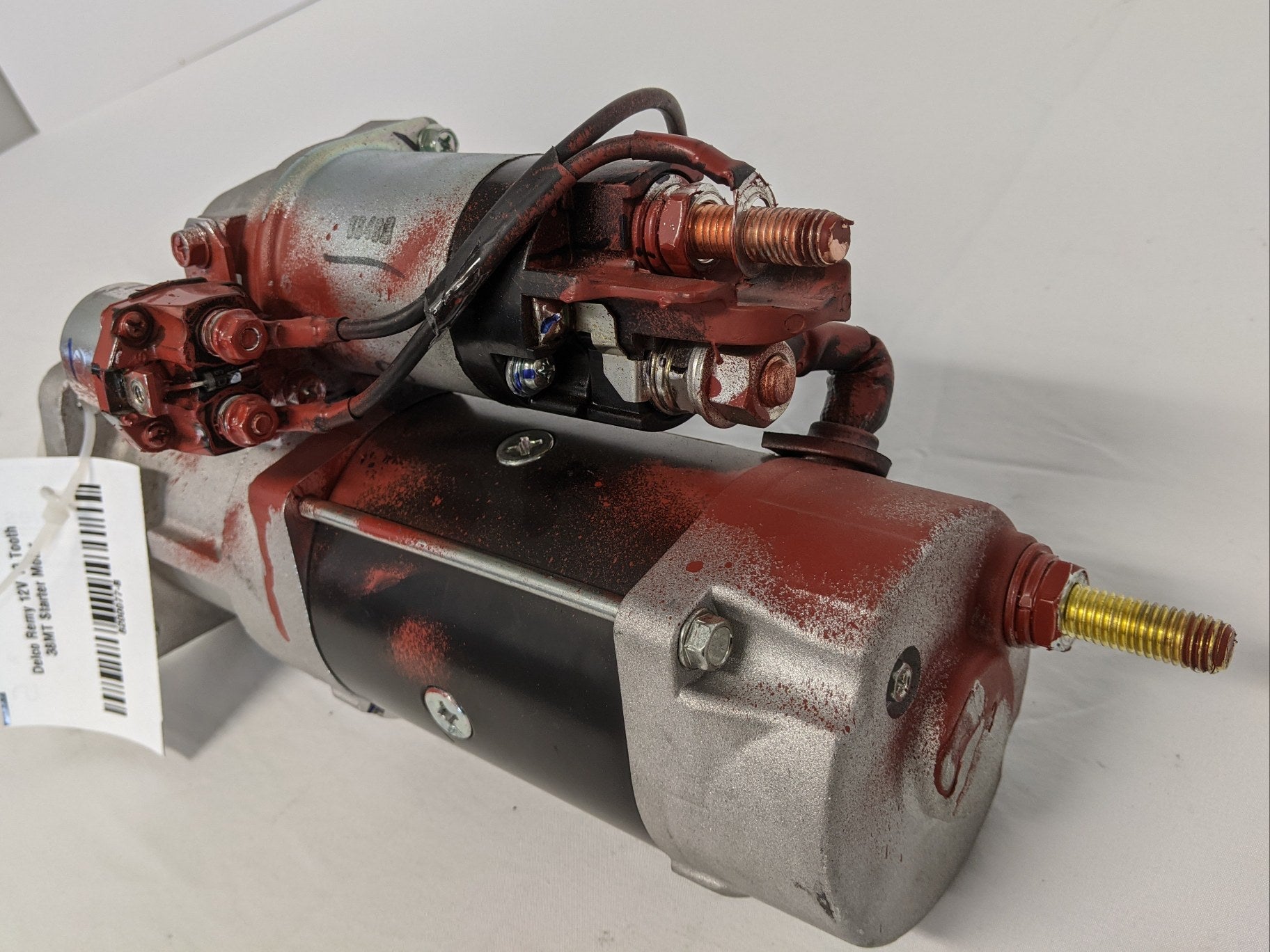

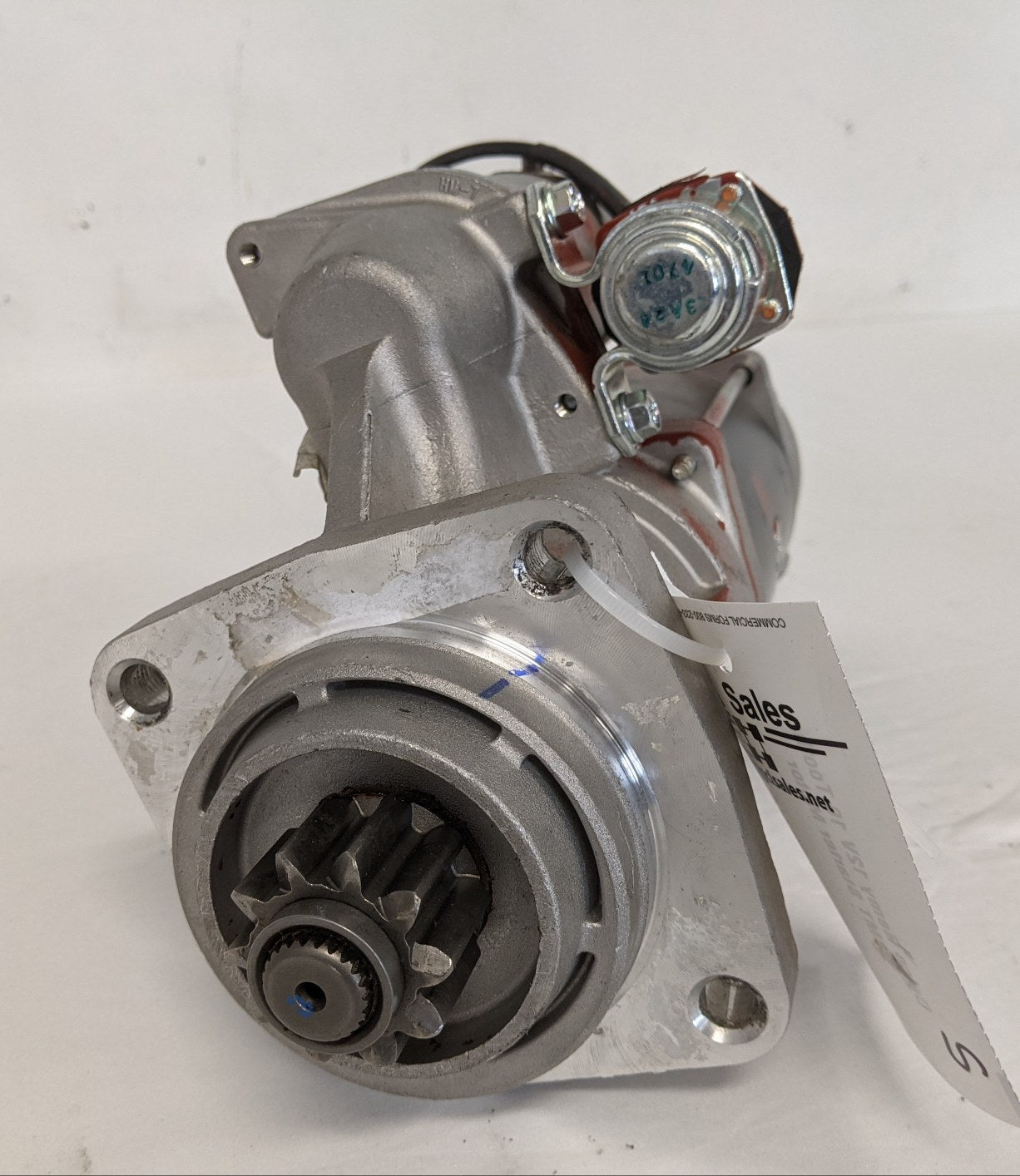

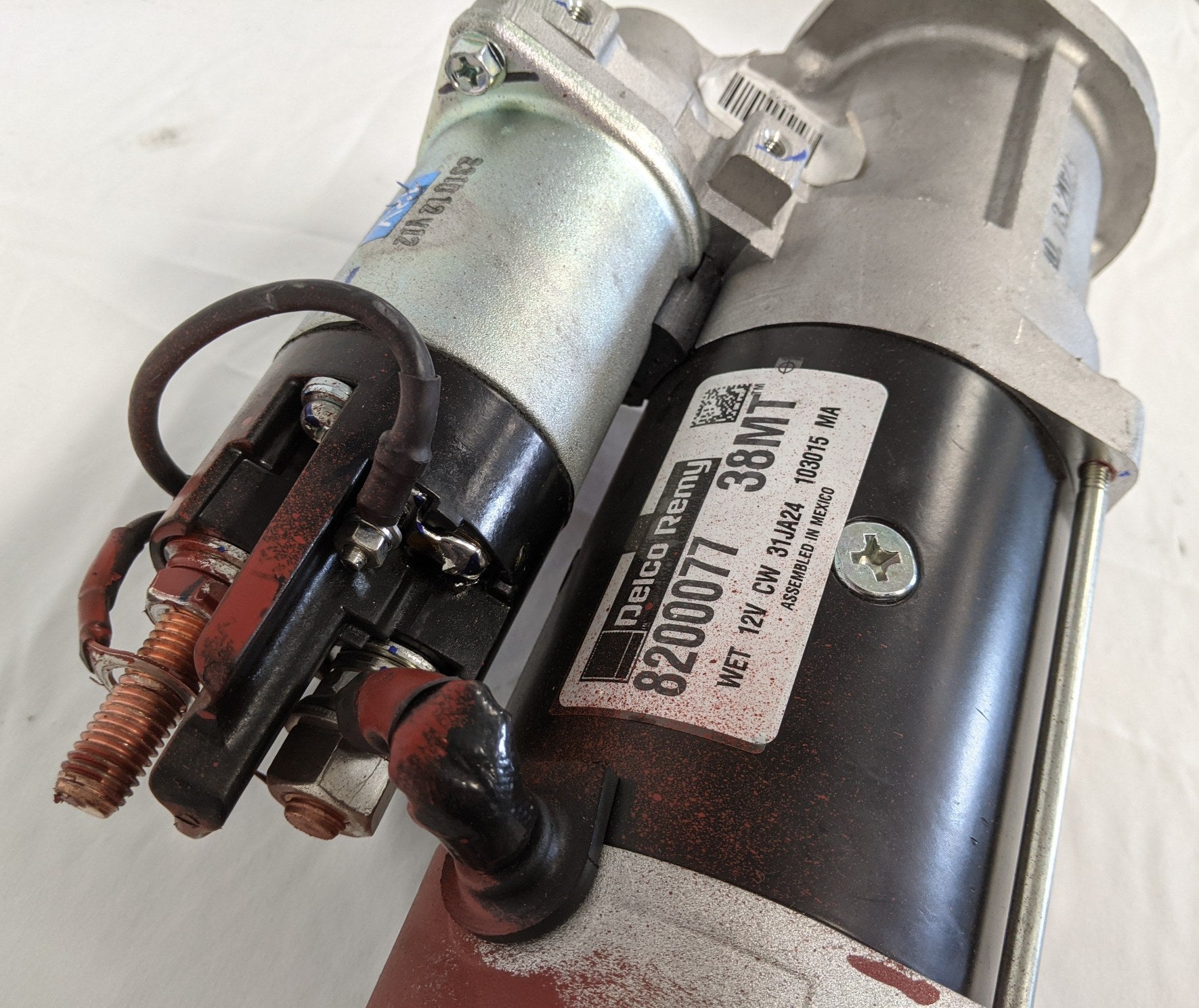

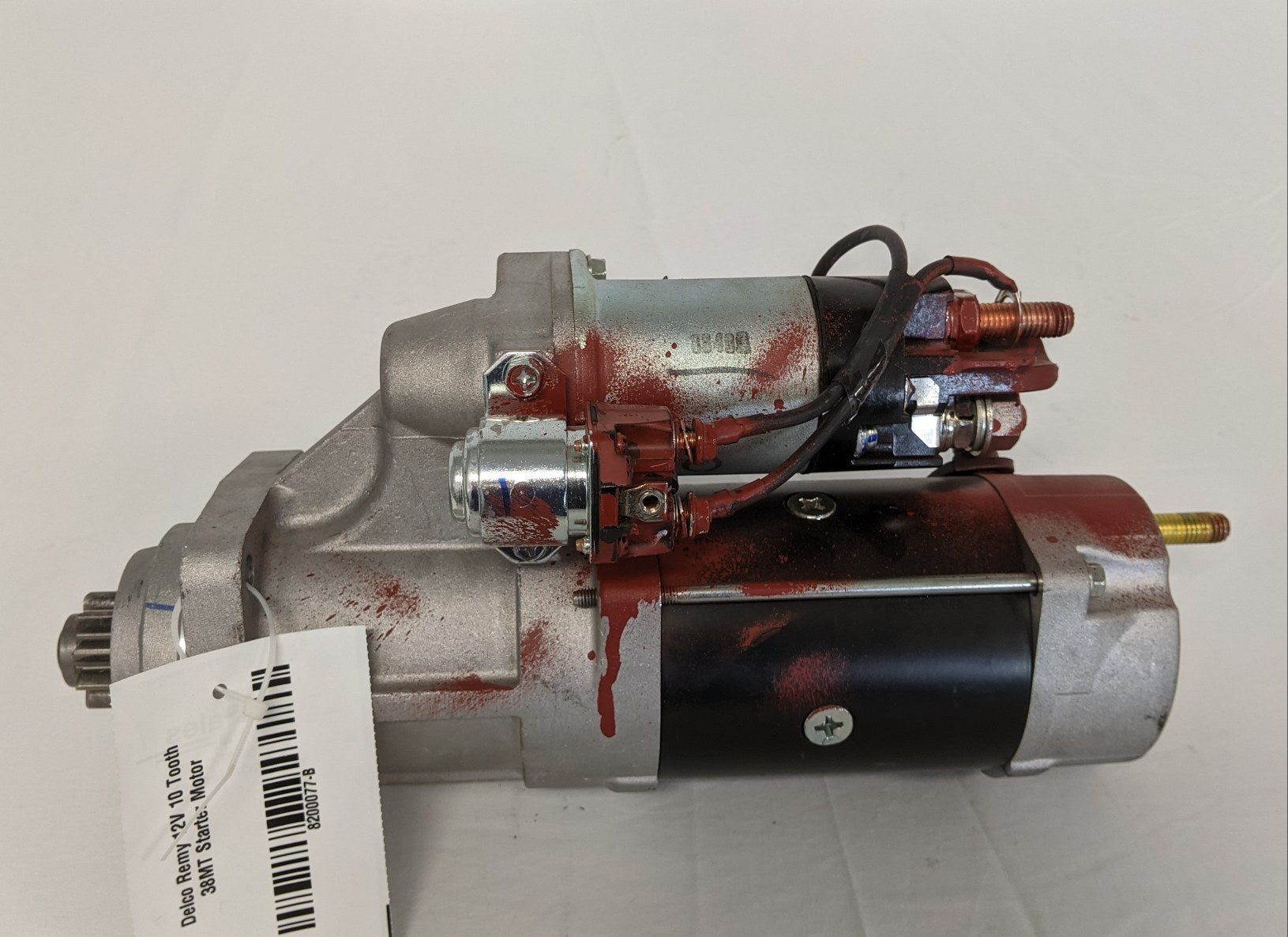

See Photos for More Details
- Cross Reference P/Ns: 8200235, 8300024, 1000ALT87198600889, 10459320, 10461775, 19020889, 19026031, 20138102, 4280005230, 4380003110, 4403492, 6809N, 8200005, 8200023, 8200077, 8200078, 8201039, 8300024, 8300024RMAN, 90014577, 90059295, 91-01-4623, 91014623, 91014623N, 91295835, A85550160PM, A90240160PM, D616005004, DR8200077, DR8300024, DRA8200077, DRA8300024, FLTST3802, GL8200077, IN0971, OTR240160PMR, OTR5550160PMR, PC1779, TG4380003110, TS-1754, TS1754 08700018, 1-2428-00DR-3, 1-2562-00DR, 1-2570-00DR, 1-2662-00DR, 1000ALT87198600889, 101-22109, 101-24109, 10121-8380, 101211-8380, 101211-8390, 101211-8410, 1012118380, 1012118390, 10459206, 10459278, 10459279, 10459284, 10459285, 10459288, 10459289, 10459320, 10459320RMAN, 10459320RX, 10459321, 10459328, 10459449, 10459608, 10459611, 10459614, 10459632, 10459633, 10461021, 10461050, 10461050-DR, 10461050DR, 10461050RMAN, 10461078, 10461169, 10461169-DR, 10461169DR, 10461169RMAN, 10461171, 10461171-DR, 10461171DR, 10461171RMAN, 10461225, 10461225RMAN, 10461226, 10461227, 10461233, 10461234, 10461276, 10461282, 10461282-DR, 10461282DR, 10461282RMAN, 10461304, 10461329, 10461329DR, 10461329RMAN, 10461385, 10461386, 10461416, 10461431, 10461431C, 10461431RMAN, 10461439, 10461496, 10461496RMAN, 10461757, 10461775, 10478812, 10478890, 10478998, 10478999, 10478999DR, 10479102, 10479131, 10479192, 10479195, 10479215, 10479226, 10479242, 10479243, 10479249, 10479630, 1048812, 105-613, 105602, 105P55, 109-16128, 10911177, 10R0396, 10R1718, 11.131.979, 110-444P, 110-555P, 110-555PH0, 110-555PHO, 110-565, 110-566P, 110-573P, 110-777, 110-810, 110-811, 110-812, 110-813, 110-814, 110-815, 110-816, 110-910, 110-911, 110-912, 110-916, 110444P, 110444PHO, 110555PHO, 110555PHO-AUT, 110775P, 111-555PHO, 11131979, 1114248, 1242800DR3, 124525109, 124525164, 124525168, 1256200DR, 1257000DR, 141-472, 141472, 142007X, 15744813, 18970, 19011022, 19011167, 19011176, 19011177, 19011187, 19011202, 19011215, 19011216, 19011252, 19011253, 19011258, 19011262, 19011267, 19011268, 19011272, 19011273, 19011515, 19011517, 19011526, 19020388, 19020389, 19020803, 19020804, 19020888, 19020889, 19020900, 19026027, 19026028, 19026029, 19026031, 1990362, 1990362RX, 1990379, 1990394, 1990404, 1990405, 1990406, 1990492, 1993783, 1993969, 1993969R, 2-2372-DR, 200-39114, 20039114, 2011847C91, 20138102, 2018380C91, 20430285, 20458726, 20458728, 20485730, 20520903, 2071513, 21001825, 21045969, 211-9200, 211-9210, 21175415, 21248989, 21300000000000, 2132-10461050, 2132-10461169, 2132-10461171, 2132-10461282, 2132-10461431, 2132-19020889, 2132-8200433, 2132-8600127, 2132-8600889, 2132-8700008, 2132-8700018, 2132-8700047, 2132-8700067, 2132-X10461169, 2132-X10461171, 2132100000000000, 213210461050, 213210461169, 213210461171, 213210461282, 213210461329, 213210461431, 213210461496, 213210478999, 213219020310, 21328200076, 21328200291, 21328200433, 21328300004, 21328300007, 21328300015, 21328600127, 21328700008, 21328700018, 21328700047, 21328700067, 2132X10461050, 2132X10461169, 2132X10461171, 21942887, 21942888, 22130NPAD, 22209658, 228000-5311, 228000-5851, 2280005311, 2280005851, 22931DR, 240-4020, 240-4022, 240-4070, 2404070, 25110351, 25110476, 280-8002, 2820107, 2820109, 2820113, 2D0043, 2MJ511AM, 2MJ512M, 2MJ522M, 2MJ58M2, 2MJ58M3, 30007VL, 3099842, 3102919, 321-741, 321-758, 321-763, 321-764, 321-842, 323-830, 323-885, 323-897, 323-900, 323830, 323897, 323900, 35135NP, 35259260, 35259730, 3558752, 3558753, 3558753C91, 3558756, 3558757, 3574173C91, 3574175C93, 3574175C94, 3579498C91, 3582185, 3582185C91, 3582185C92, 3586537C91, 3593808C91, 3593808C92, 3593808C93, 3595329, 3595329C91, 3595329C92, 3601668C91, 3604323RX, 3667911C91, 3667912, 3667912C91, 3667912C92, 3672731, 3672731C92, 3700150, 3700150C91, 3700150C92, 3700150C93, 3700307C91, 3701568, 3701568C91, 370156BC92, 3804473C91, 3804473C92, 3807423C91, 3863010C91, 3863010C94, 3919015, 3949534, 3965972C91, 3978385, 4024553C91, 4041862C91, 4085411C91, 4099176C91, 410-12339, 410-12356, 410-12705, 410-12708, 410-48048R, 4101602, 4110027, 42033486, 428000-1420, 428000-1422, 428000-4420, 428000-5120, 428000-5310, 428000-7090, 428000-9950, 4280000-5120, 4280001420, 4280001422, 4280004420, 4280005120, 4280005230, 4280009950, 438000-3110, 4380003110, 4400213, 4403492, 487005, 487010, 4951PARM, 4996706, 4C40-10300-GA, 4C4Z-10346-FA, 4C4Z-10346-GA, 50-161-1, 5034-110555PHO, 597219C91, 61006210, 61006211, 6382N-PT, 6613N, 6667N, 6668N, 6805, 6809N, 6811, 6821, 6859N, 6907, 6907N, 6914, 6914N, 8200005, 82000058200433, 8200005P, 8200023, 8200025, 8200030, 8200045, 8200055, 8200058, 8200076, 8200078, 8200080, 8200081, 8200085, 8200087, 8200164, 8200182, 8200186, 8200196, 8200210, 8200217, 8200218, 8200219, 8200235, 8200235P, 8200252, 8200253, 8200291, 8200291P, 8200360, 8200384, 8200433, 82004338300073, 8200457, 8200469, 8200470, 8200571, 8200606, 8200610, 8200625, 8200635, 8200639, 8200646, 8200659, 8200664, 8200672, 8200688, 8200691, 8200697, 8200698, 8200763, 8200768, 8200770, 8200783, 8200796, 8200808, 8200817, 8200857, 8200959, 8201002, 8201039, 8201080, 8201081, 8300004, 8300004RMAN, 8300005, 8300005RMAN, 8300006, 8300007, 8300007RMAN, 8300008RMAN, 8300015, 8300015AUT, 8300015RMAN, 8300024, 8300024RMAN, 8300061, 8300062, 8300064, 8300064RMAN, 8300065, 8300066, 8300073, 8300074, 8300078, 8362N, 841ON, 85103338, 8510338, 85110753, 854039, 8600015, 8600043, 8600060, 8600066, 8600073, 8600082, 8600127, 8600143, 8600145, 8600168, 8600171, 8600201, 8600202, 8600203, 8600203DEL, 8600231, 8600244, 8600247, 8600248, 8600251, 8600252, 8600314, 8600315, 8600316, 8600367, 8600404, 8600405, 8600415, 8600422, 8600488, 8600519, 8600524, 8600645, 8600771, 8600772, 8600773, 8600889, 8609N, 8614N, 8700001, 8700002, 8700003, 8700004, 8700007, 8700008, 8700008RMAN, 8700013, 8700015, 8700017, 8700018, 8700018-DR, 8700018DR, 8700018RMAN, 8700030, 8700039, 8700040, 8700047, 87000478700067, 8700047RMAN, 8700054, 8700067, 8700067RMAN, 8707N, 8719N, 88860778, 88863465, 8C4Z11002BA, 8LHA/P, 8LHP2170V, 8LHP2170VE, 8LHP2170VF, 8LHP2170VH, 8LHP2276V, 90-01-4328, 90-01-4329, 90-01-4392, 90-01-4393, 90-01-4393HO, 90-01-4393N, 90-01-4447, 90-01-4450, 90-01-4513, 90-01-4513N, 90-01-4516, 90-01-4577, 90-01-4577N, 90-05-9295, 90-05-9296, 90-15-6569, 90-15-6569N, 90014328, 90014329, 90014393HO, 90014393N, 90014450, 90014513, 90014513N, 90014516, 90014577, 90032414, 90059295, 9045Z, 91-01-3702, 91-01-4148, 91-01-4161, 91-01-4161N, 91-01-4396, 91-01-4396N, 91-01-4466, 91-01-4466N, 91-01-4526, 91-01-4527, 91-01-4602, 91-01-4623, 91-01-4627, 91-01-4707, 91-01-4714, 91-01-4760, 91-01-4760N, 91-04-7803, 91-04-7803N, 91-04-7832, 91-27-3305, 91-27-3305N, 91-27-3398, 91014161, 91014396, 91014396N, 91014407, 91014407N, 91014466, 91014526, 91014526N, 91014527, 91014602, 91014622, 91014622N, 91014623, 91014623N, 91014627, 91014627N, 91014628, 91014628N, 91014632, 91014632N, 91014707, 91014707N, 91014714, 91014714N, 91014760, 91014760N, 91014779, 91014779N, 91273305, 91295835, 914516, 9460R, A-1620, A-1703, A-1709, A-1721, A-1785, A-9426, A004TU1771, A160210, A1703, A1709, A1721, A8200006001, A8200023-001, A85550160PM, A9-022-0145PM, A9-035-0140PM, A9-036-0170PM, A9-036-0170QM, A90220145PM, A90240160PM, A90350140PM, A90360170PM, A90360170QM, AL9920LL, AL9961LH, AL9961LH787042, AL9962SB, ALT-0061, ALT-1003, ALT-1240, ALT-3600, ALT-3650, ALT0061, ALT1003, ALT1240, ALT3600, ALT3650, ALT8076, ALT8362, ALT8609, ALT8614, AM0071, AM1771, APL-101781, APL-101784, APL-101787, APL-101788, APL-101794, AR-35-014P, AVi555P, BE3412135P, BE421212, BLD2305, BLD2306, BLD2309, BLD2310, BLD2311, BLD2312, BLP2131GH, BLP2303, BLP2304, BLP2309, BOCAL9962SB, BULK110-555PHO, D27-1006-0160P, D27-1009-0160P, D27-1015, D27-6001-0130P, D27-6001-1030P, D27-6006-00001, D271015, D2760010130P, D61-6002-003, D61-6002-005, D61-6002-009, D616002003, D616002005, D616002009, D616005002, D616005004, DC323830, DCT 3804473C92, DE 19020889, DEL10461050, DEL8600889, DR 10461171, DR 10461431, DR 19020889, DR 8200433, DR 8600127, DR 8600889, DR 8700018, DR 8700047, DR-8200433, DR-8600127, DR-8600247, DR-8700018, DR10461050, DR10461169, DR10461171, DR10461233, DR10461282, DR10461304, DR10461329, DR10461431, DR10461496, DR10478999, DR10479215, DR10479226, DR19020889, DR8200005, DR8200055, DR8200077, DR8200196, DR8200235, DR8200291, DR8200433, DR8200571, DR8300004, DR8300005, DR8300007, DR8300015, DR8300024, DR8300066, DR8600066, DR8600127, DR8600203, DR8600248, DR8600889, DR8700008, DR8700018, DR8700047, DR8700067, DRA10461050, DRA10461169, DRA10461171, DRA10461233, DRA10461282, DRA10461304, DRA10461329, DRA10461431, DRA10461496, DRA10478890, DRA10478999, DRA19020889, DRA19020900, DRA8200005, DRA8200005P, DRA8200077, DRA8200235P, DRA8200433, DRA8200664, DRA8300005, DRA8300007, DRA8300024, DRA8600066, DRA8600127, DRA8600203, DRA8600889, DRA8700008, DRA8700018, DRA8700047, DRA8700067, DRM8200433, E-821115X, E-821127X, E-821175X, E821115X, E821127X, E821175X, F3HZ-11002-C, FLT1003500, FLT1003640, FLT1003650, FLT2000121, FLTAL22150P, FLTAL35140P, FLTST3802, FLTST3902, FVDR10479215, GL-576, GL8200077, GL8200664, IN-3179, IN0971, IN1378, IN2178, IN3179, JA004AU1771, K10478999, K10479215, K1990353, K1993969, LBP2176GH, LBP2180GH, LBP2187GH, LBP2188H, LBP2189RM, LBP2190H, LBP2203H, LBP2224H, LIL160, LMN105602, LN 110-555PHO, LN105602, LN110-555PHO, LN110555PRM, LN4951PARM, LNLBP2180GH, LNLBP2189RM, LNM105302, LNM105322, LNM105602, LNM105613, LNPM105602, M009A7269, M009T70279, M009T70379, M009T71379, M009T71579, M009T71979, M009T73179, M105302, M105322, M105602, M105610, M105611, M105612, M105613, M105R2002SE, M105R2022SE, M105R2502SE, M105R2511SE, M105R2512SE, M105R2513SE, M110602, M110605, M110610, M110R2602SE, M110R2605SE, M130D2001H, M39433, M9T70279, M9T70379, M9T72078, M9T73179, MAL-1408, MAL-1459, MDP2934, MDRS142007X, MELPC1379, MELVV0279, MIBAM1771, MIBIN3179, MIRS142001X, MIT3179, MITAM1771, MITIN1378, MITIN3179, MITPC1379, MK1978, MS2-506, MS2-506D, MS2-530D, MS2-570, MS2-57DD, MS2500, MS2502, MS2503, MS2504, MS2506, MS2506D, MS2507, MS2509, MS2511, MS2530, MS2530D, MS2530RM, MS2570, MS2570D, MS583, MSMDRS142007X, ND2280005311, ND2280005851, NDTG4280004420, OTR220145PMR, OTR240160PMR, OTR350140PMR, OTR360170PMR, OTR391201R, OTR411200R, OTR5550160PMR, PC1379, PC1779, PC2679, PP3412135P, PP421212, R0459340, R0459341, R0461385, R0461386, R10461050, R10461169, R10461171, R10461282, R10461329, R10461431, R10461496, R8700018, RE035P, RE036PS, RE3933, RE41755, REN3933, RF299136698, RF49055743, RF49907022, RF559066828, RF779137078, RF8200433, RF8904714, RF99081568, RS137014X, RS141025X, RS141026X, RS142002X, RS142020X, RWA8614D, RWS2931D, RX8700018, S27965, S9-039-1201, S9-041-1200, S90411200, S9411200, SA971, SDR0295, SDR0458, SE501452, SMR19020889, SR9921LH, STA6613, STA6907, STR-0121, STR-4295, STR0121, STR4295, TG4380003110, TLA4513N, TLS4396N, TLS4407N, TLS4707N, TS-1500, TS-1534, TS-1652, TS-1681, TS-1682, TS-1734, TS-1754, TS-1785, TS-1825, TS1500, TS1562, TS1606, TS1611, TS1652, TS1681, TS1682, TS1734, TS1754, TS1782, TS1785, TS1825, TWD10461050, TWD10461169, TWD10461171, TWD10461282, TWD8700018, UPT8600066, VV0279, VV1979, WA2212160PN, WA2412145PN, WIL-91-01-4161, WIL-91-01-4396, WIL-91-01-4602, WIL91014161, WIL91014396, WIL91014602, ZD10459288, ZD10461050, ZD10461053, ZD10461431, ZD10479215, ZLN110444P, ZLN110555PHO, ZLNBLP2190H, ZLNLBP2180GH, ZLNLBP2190H, ZLNM105602, d2710090160p, 428000-5230, TS-1754, 6809N, S-H001084, 8201039, 90032414, DR 8200077, 10459320, 10461775, 19020889, 19026031, 20138102, 4280005230, 4380003110, 8200005, 8200023, 8300024RMAN, 90014577, 90059295, 91014623, 91014623N, 91295835, A85550160PM, A90240160PM, D616005004, DR8200077, DR8300024, IN0971, OTR240160PMR, OTR5550160PMR, PC1779, TG4380003110, TS1754, 701579AT
