DTL - DLL Elite 120-277 VAC Electronic Locking Type Photocontrol - P/N DLL127F

Dark to Light (DTL)SKU: DLL127F-B

Price:
Sale price$25.83

Description

DTL - DLL Elite 120-277 VAC Electronic Locking Type Photocontrol

  • Fail Off Electronic Locking Type Photocontrol 120 - 277-Volt AC Blue DTL
  • P/N: DLL127F
  • Operating Levels: Turn-on at 1.5 FC and Turn-off at 2.25 FC (On:Off Ratio of 1:1.5)
  • Operating Temperature: -40°F to 158°F
  • Voltage: 120 to 480 VAC, 60Hz
  • Load rating: 1000 watts, 1800 VA ballast
  • UL Load Rating: 1000VA
  • Average Power Consumption:<0.5 watts @ 120V
  • Other Features:
    • Compatible w/ LED Lighting Fixtures that Require Dusk to Dawn Control
    • High Inrush Current Fixtures
    • Designed to Last as Long as Your LED Lighting System, 20+ Years
    • LED Inrush Protection with TRIAC Assisted Relay
    • Double Thick Enclosure and Lens with Additional UV Inhibitor
    • High Temp Base Plastic Tested to 284°F
    • Long Life Capacitors
    • Full Wave Rectified Power Supply
    • Dual Zener Diodes for Long Life
    • Solid Brass Contact Blades
    • Double Sided, thru Hole Plated .062” FR4 Circuit Board
    • Conformal Coated Printed Circuit Board
    • Regulatory Listings ANSI C136.10
    • Extreme Surge Protection of 1280J/40kA Utility or 2120J/40kA UL Listed
    • ROHS Compliant
    • UL Listed to U.S. and Canadian Safety Standards
  • May Have Cosmetic Blemishes

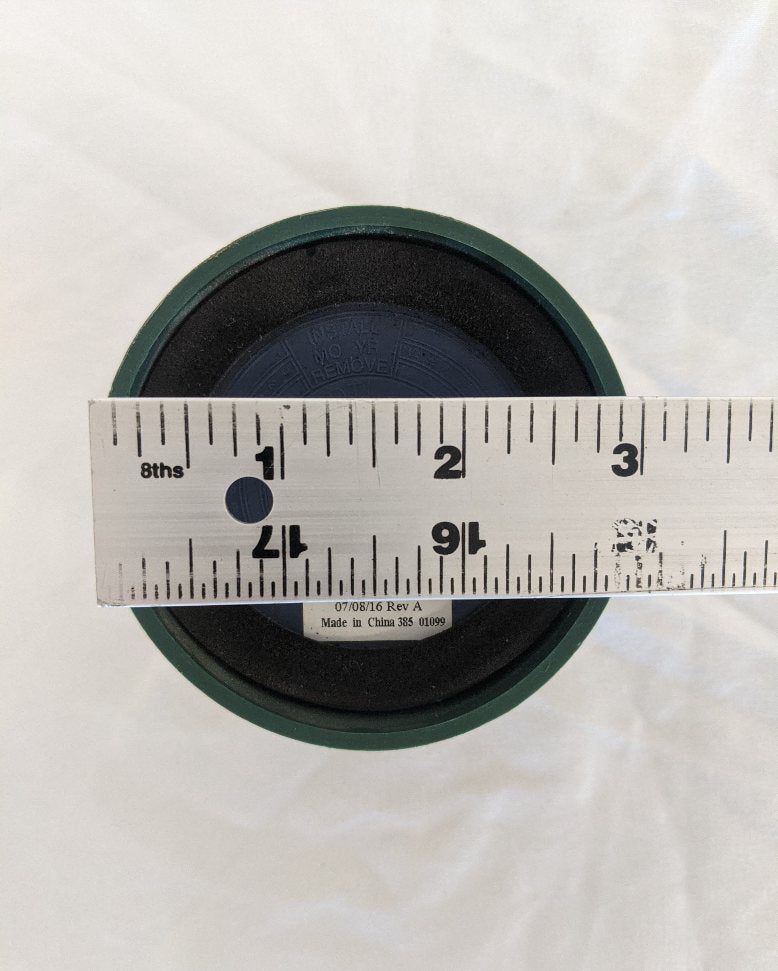

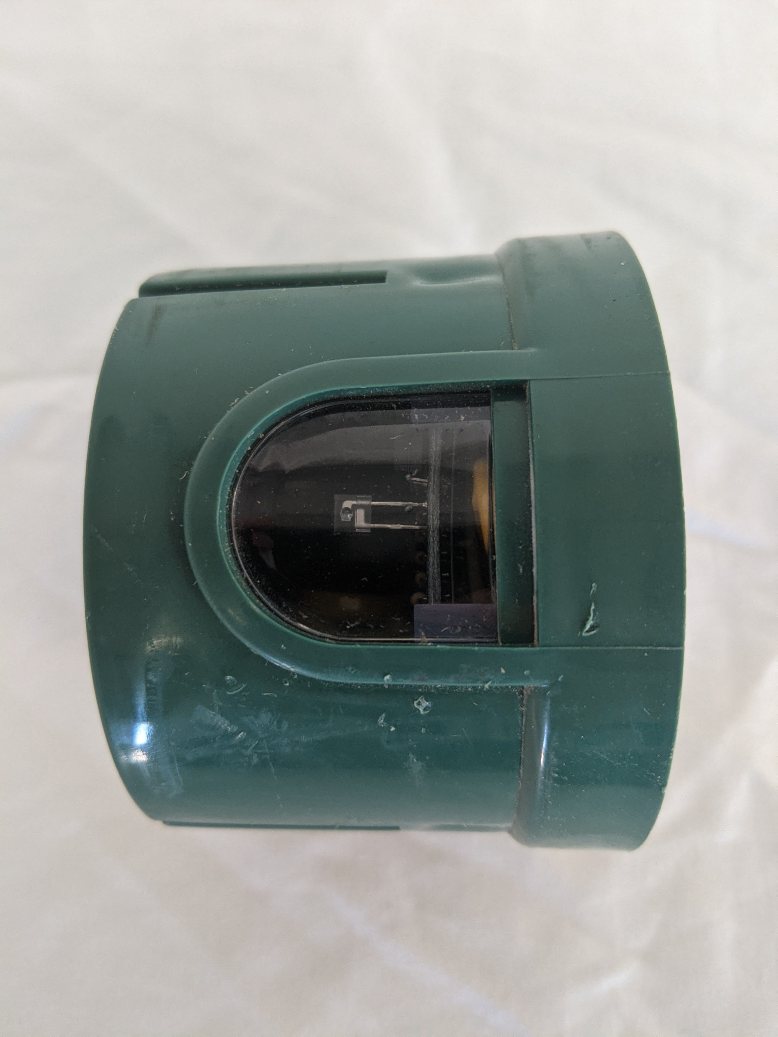

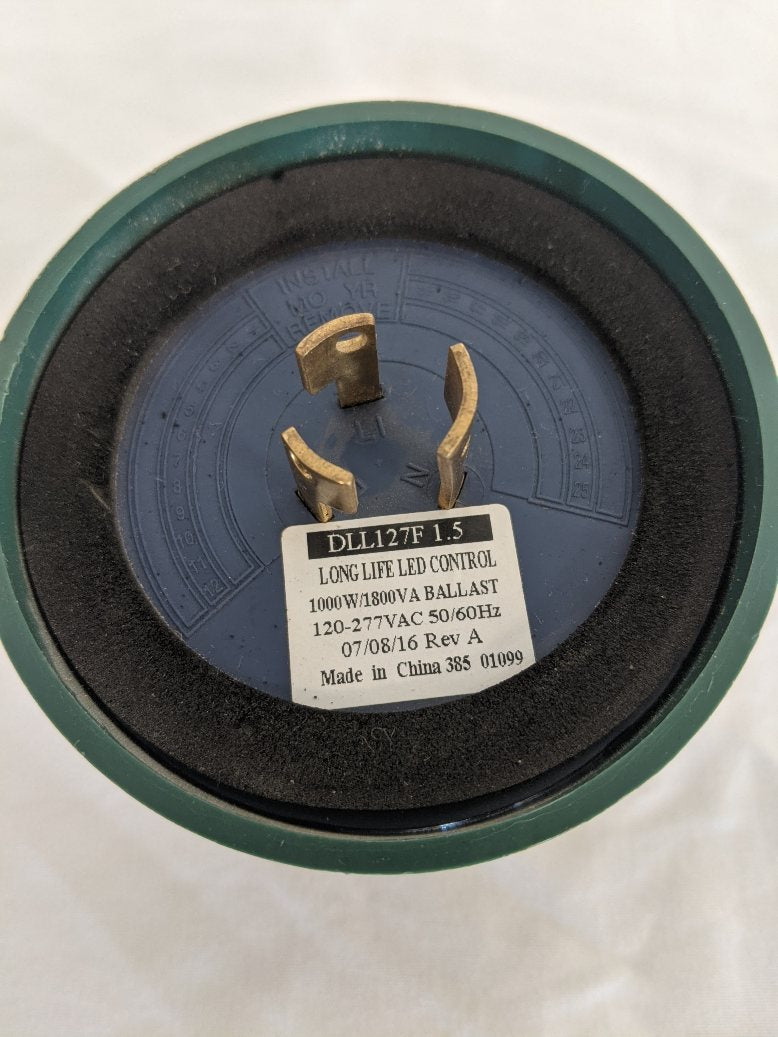

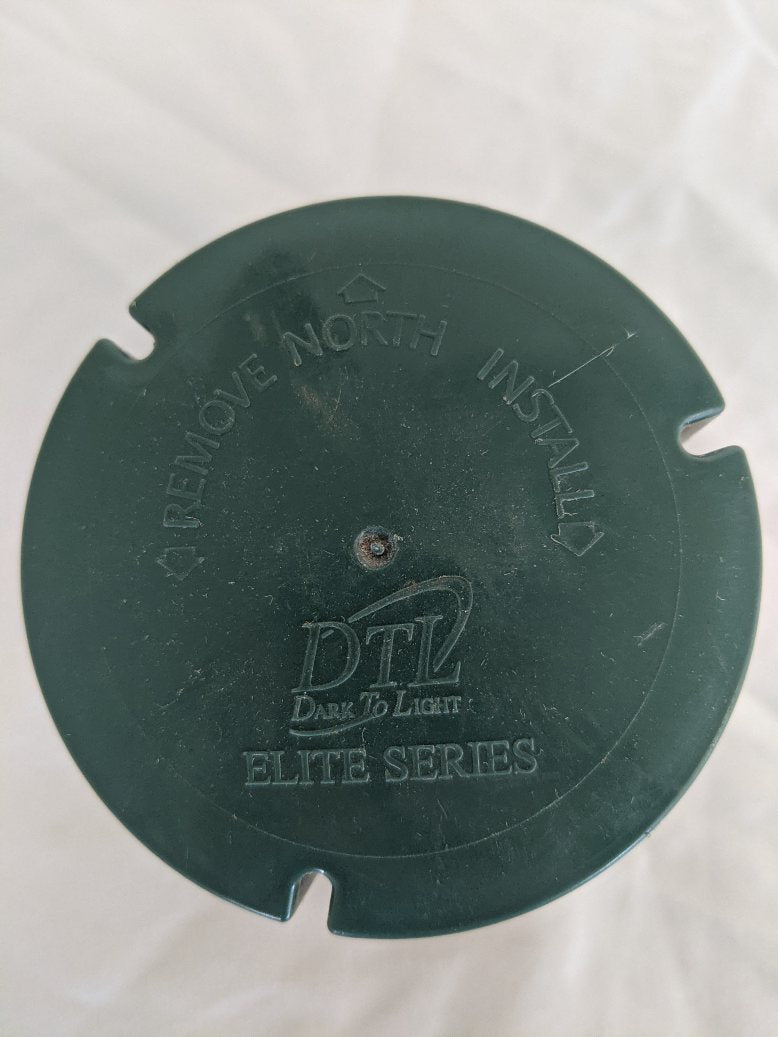

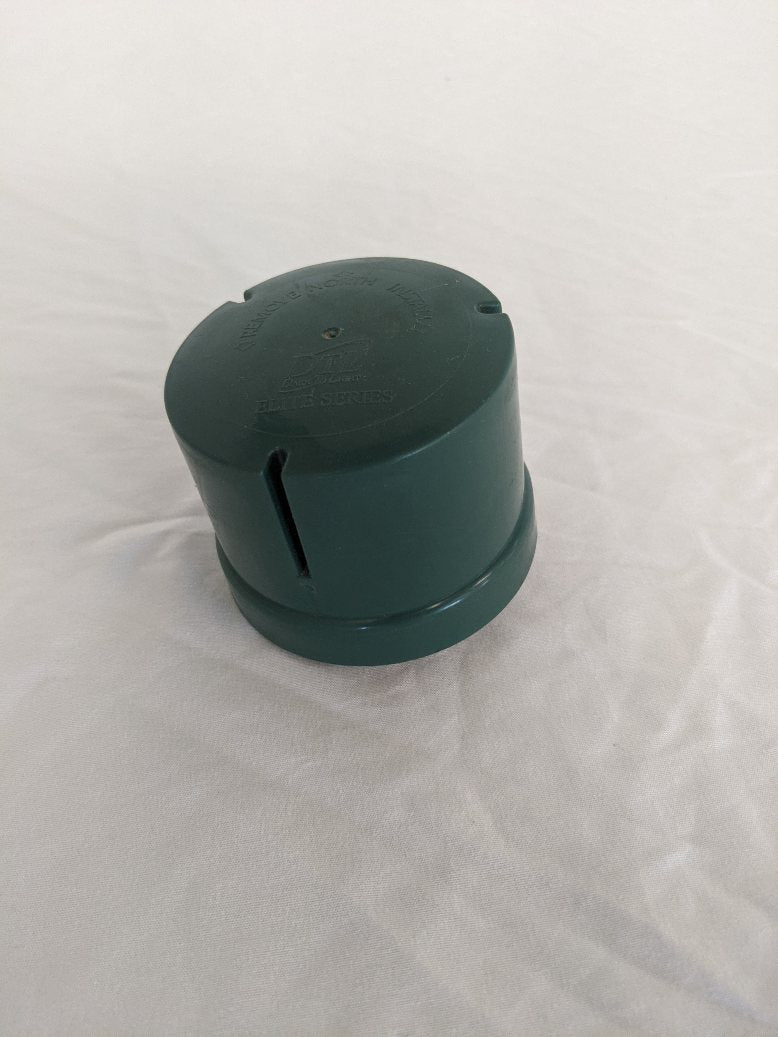

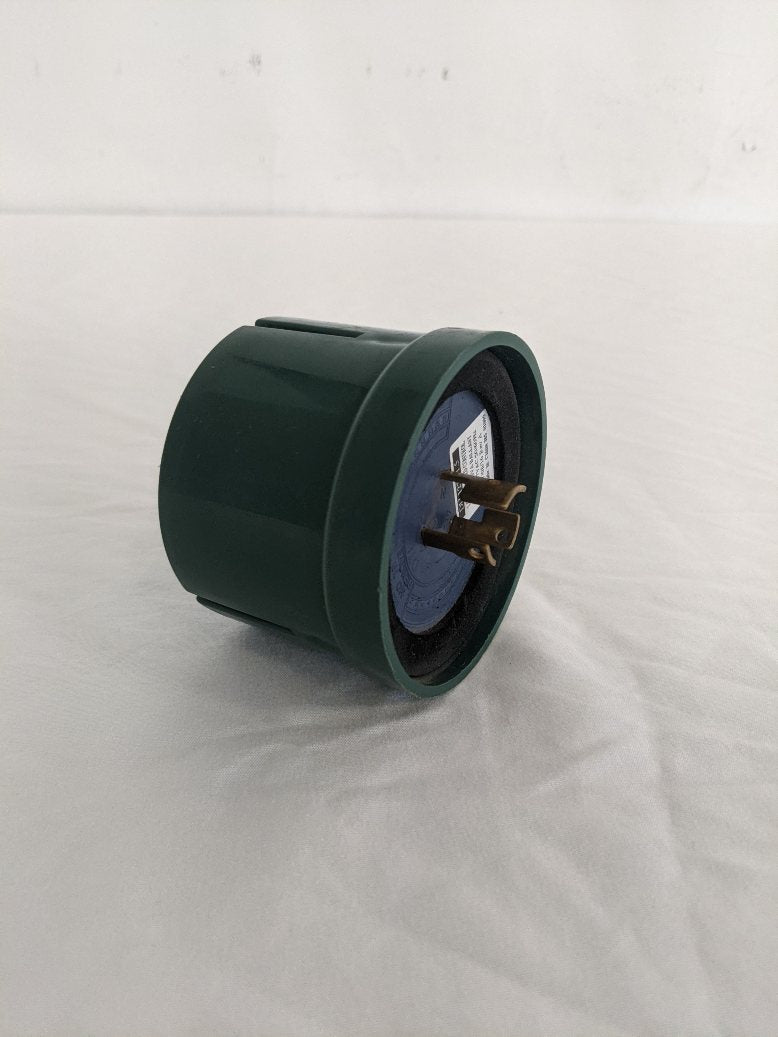

  • See Photos For More Details
