Wabco Hydraulic Clutch Pedal & Slave Cylinder Assembly - P/N A02-14022-000

WabcoSKU: A02-14022-000-BK

Price:
Sale price$800.09
 More payment options

Description

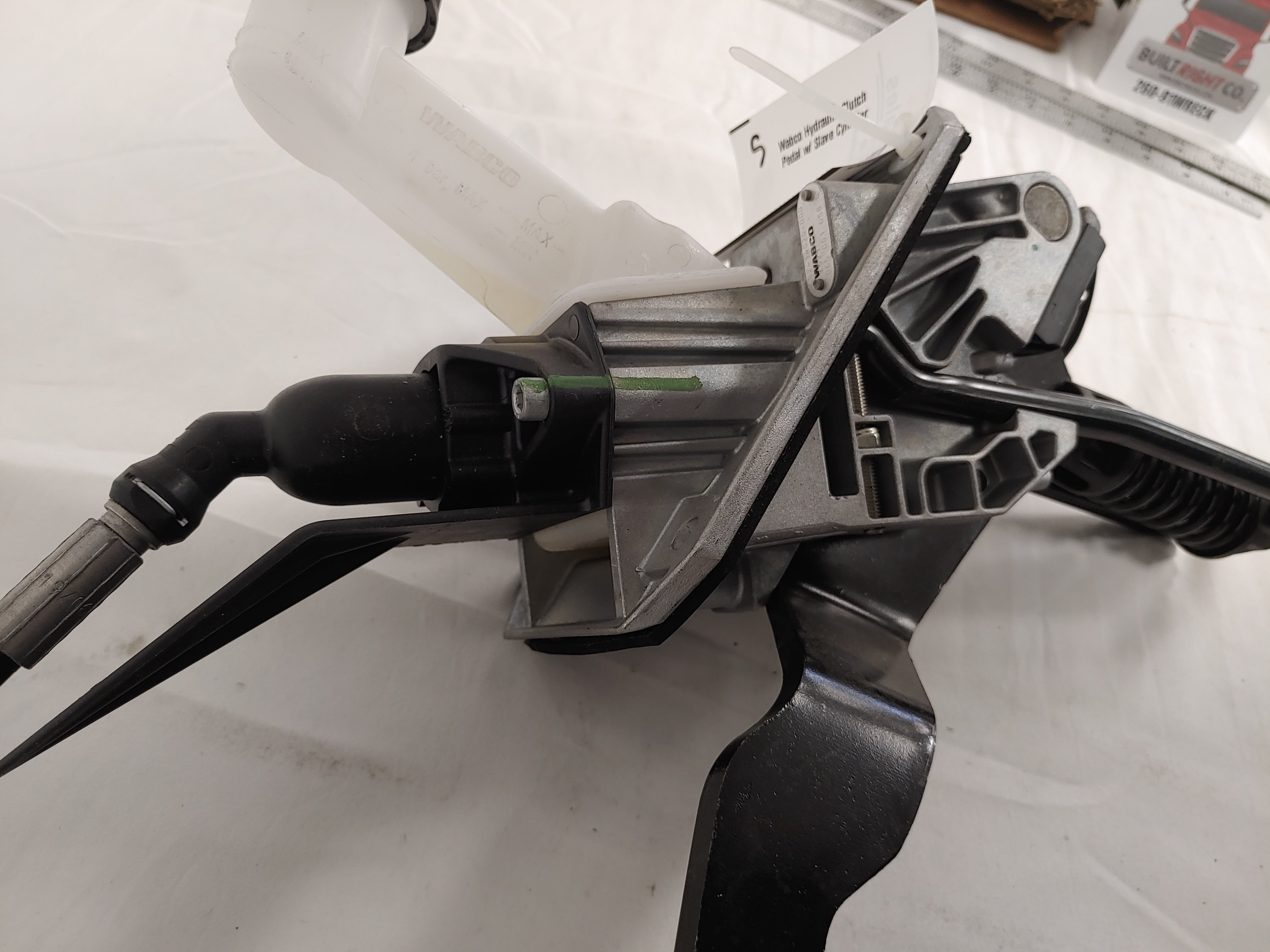

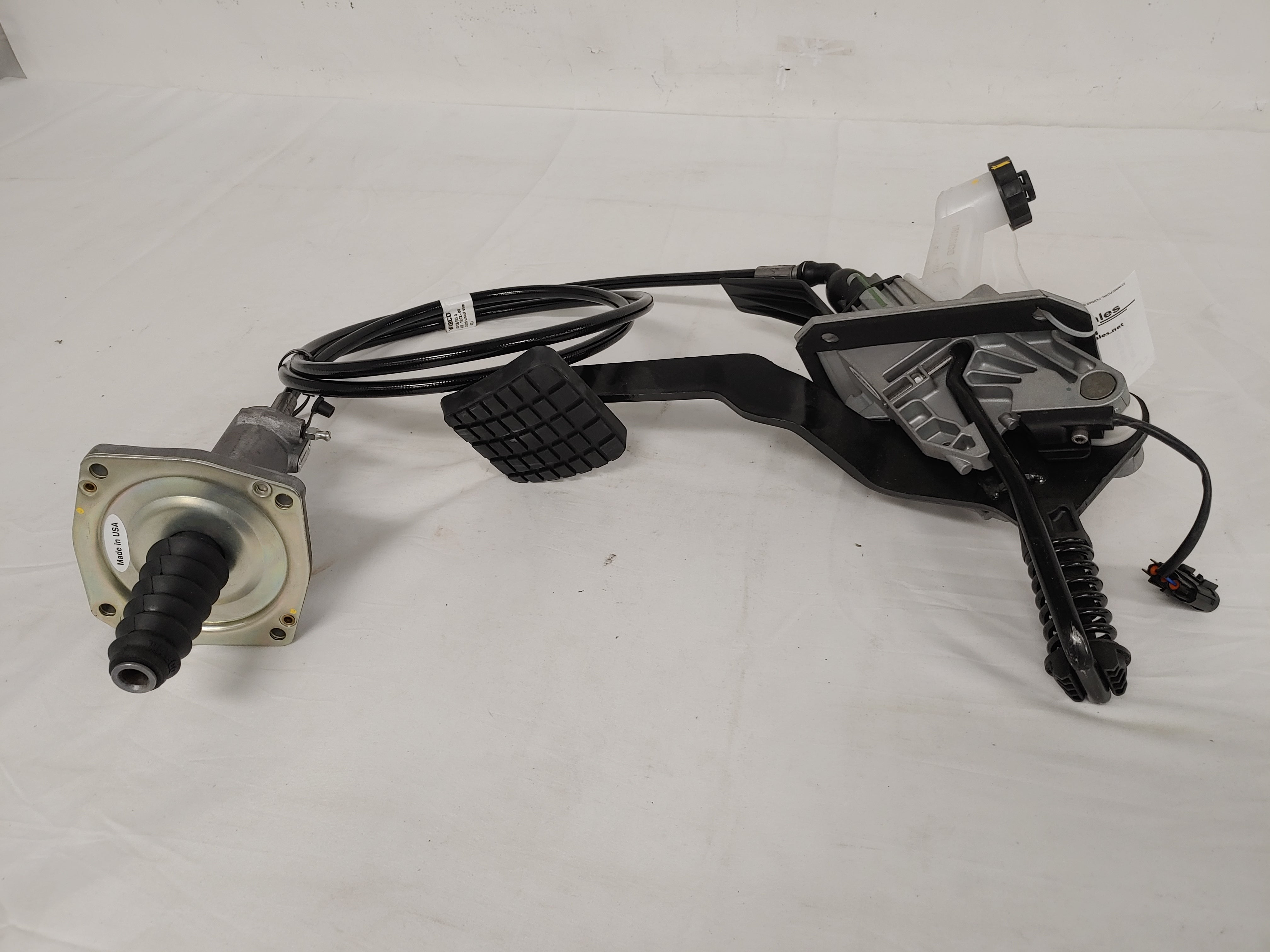

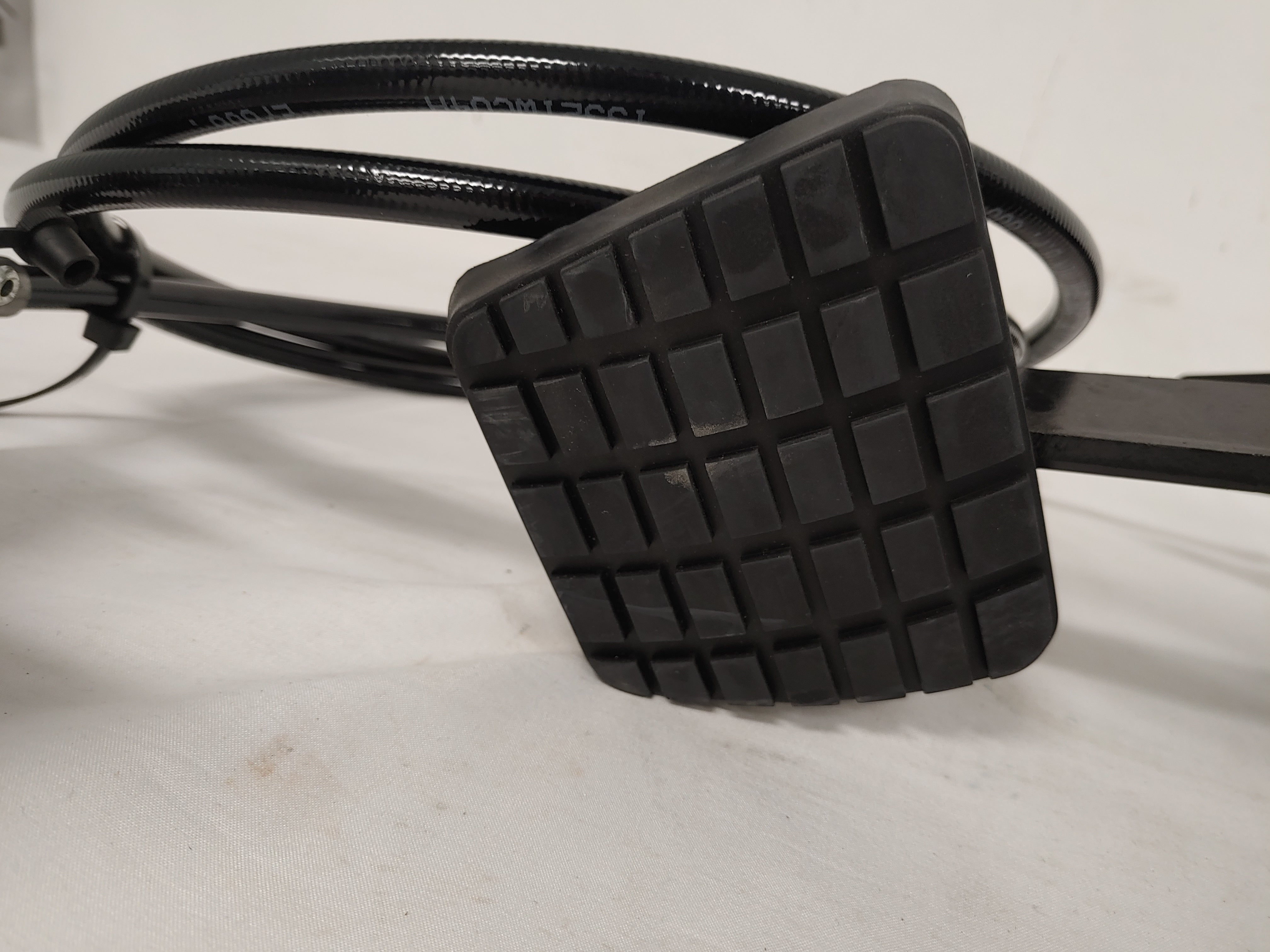

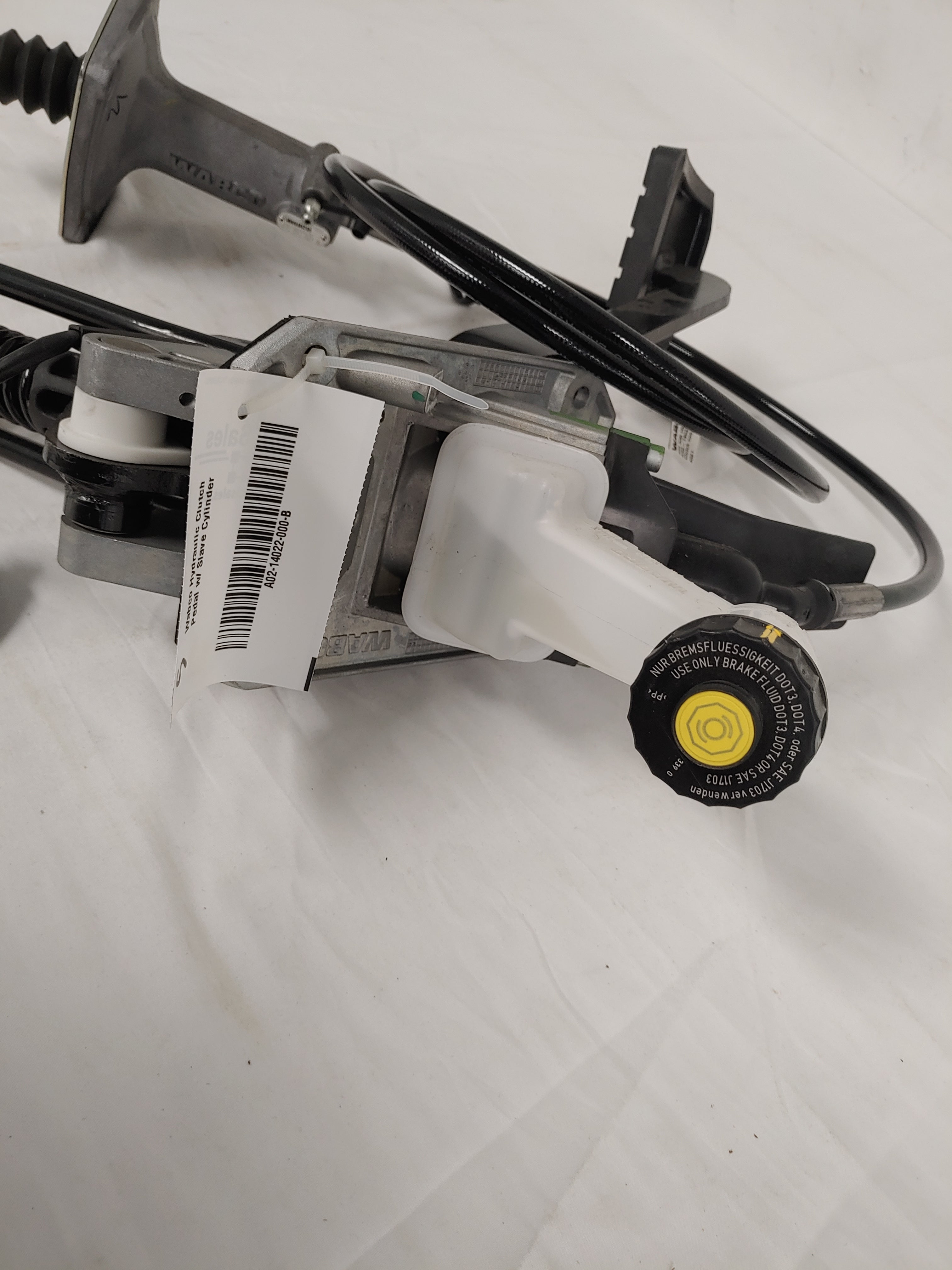

Wabco Hydraulic Clutch Pedal & Slave Cylinder Assembly

  • Pedal - Clutch, Hydraulic, Slave Cylinder Assembly, 2.2M

  • Freightliner Assembly P/N: A02-14022-000

  • Wabco Assembly P/N: 400 030 051 0 / WAB 400 030 051 0 / WAB4000300510 / 4000300510 / WAB 400-030-051-0

  • Freightliner Clutch P/N: A02-14020-000

  • Wabco Clutch P/N: 965 001 058 0 / 9650010580 / WAB 965 001 058 0 / WAB 965-001-058-0 / WAB9650010580

  • Freightliner Slave P/N: A02-13133-000

  • Wabco Slave P/N: 970 051 503 0 / 9700515030 / WAB 970 051 503 0 / WAB 970-051-503-0 / WAB9700515030

  • Assembly Compatible w/ Some Western Star 4700 & 4900 Trucks - Please Verify Fit With Your Truck

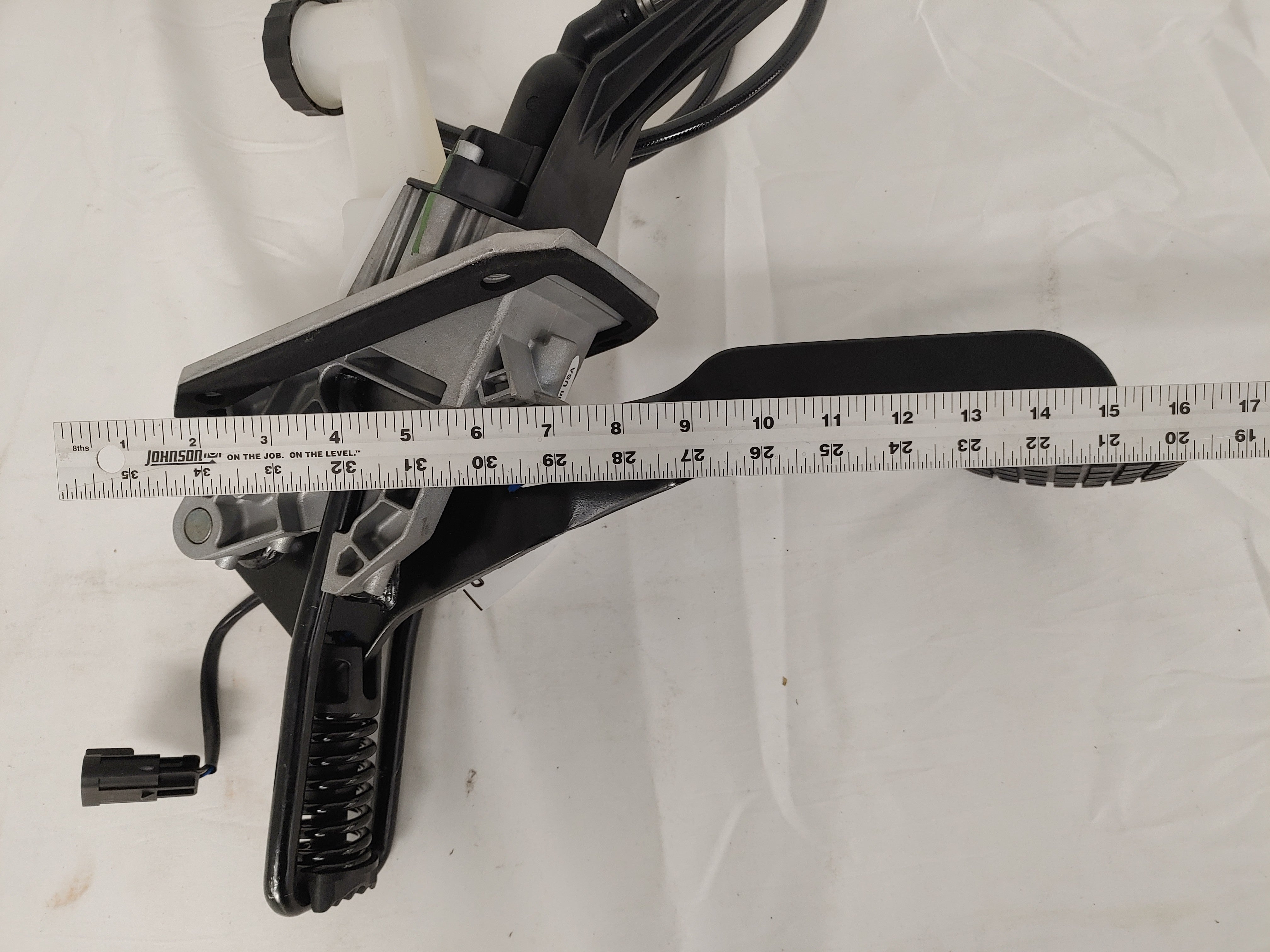

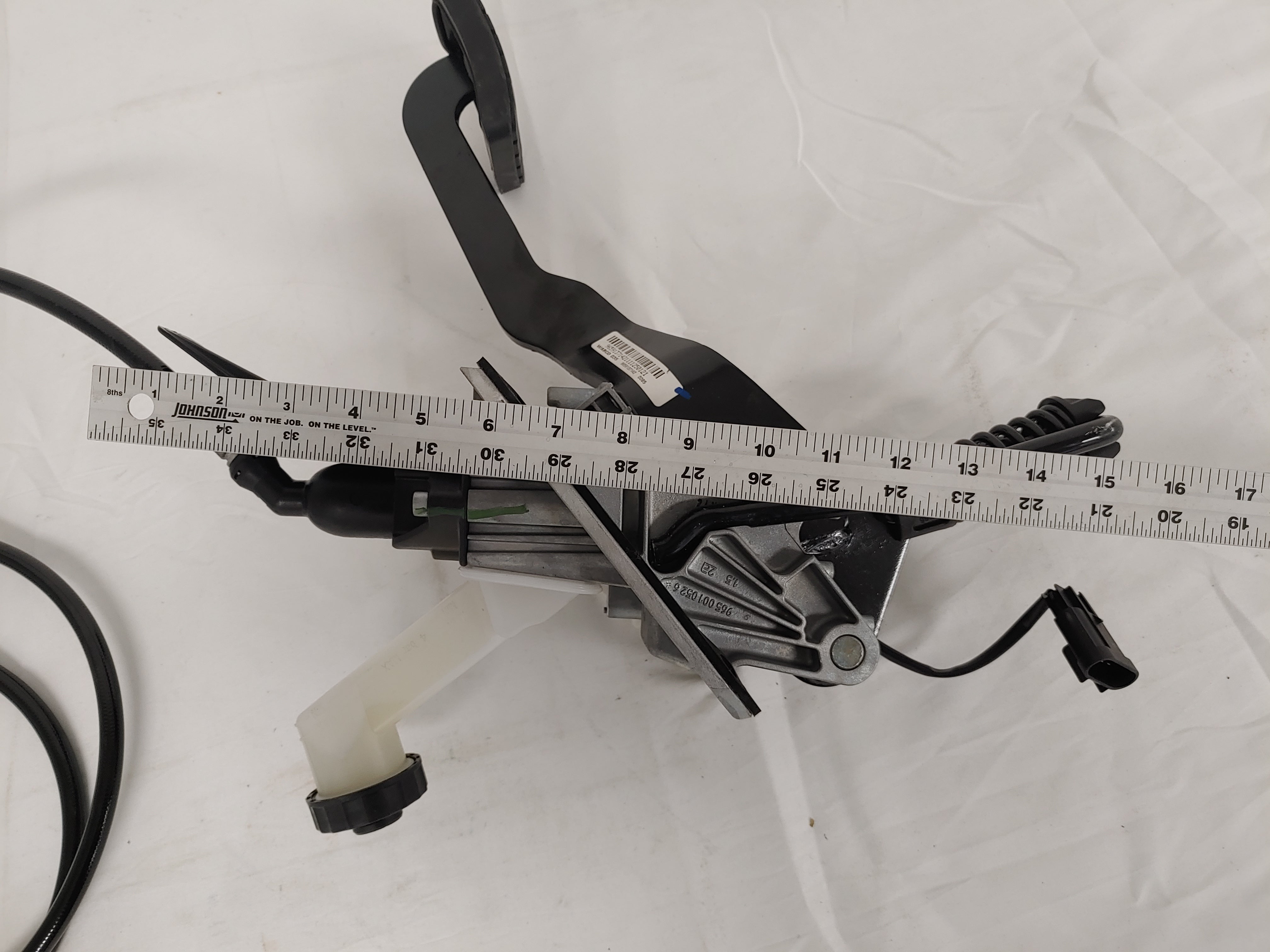

  • Clutch Pedal Specifications:
    • Max Operating Pressure: 181.30 psi

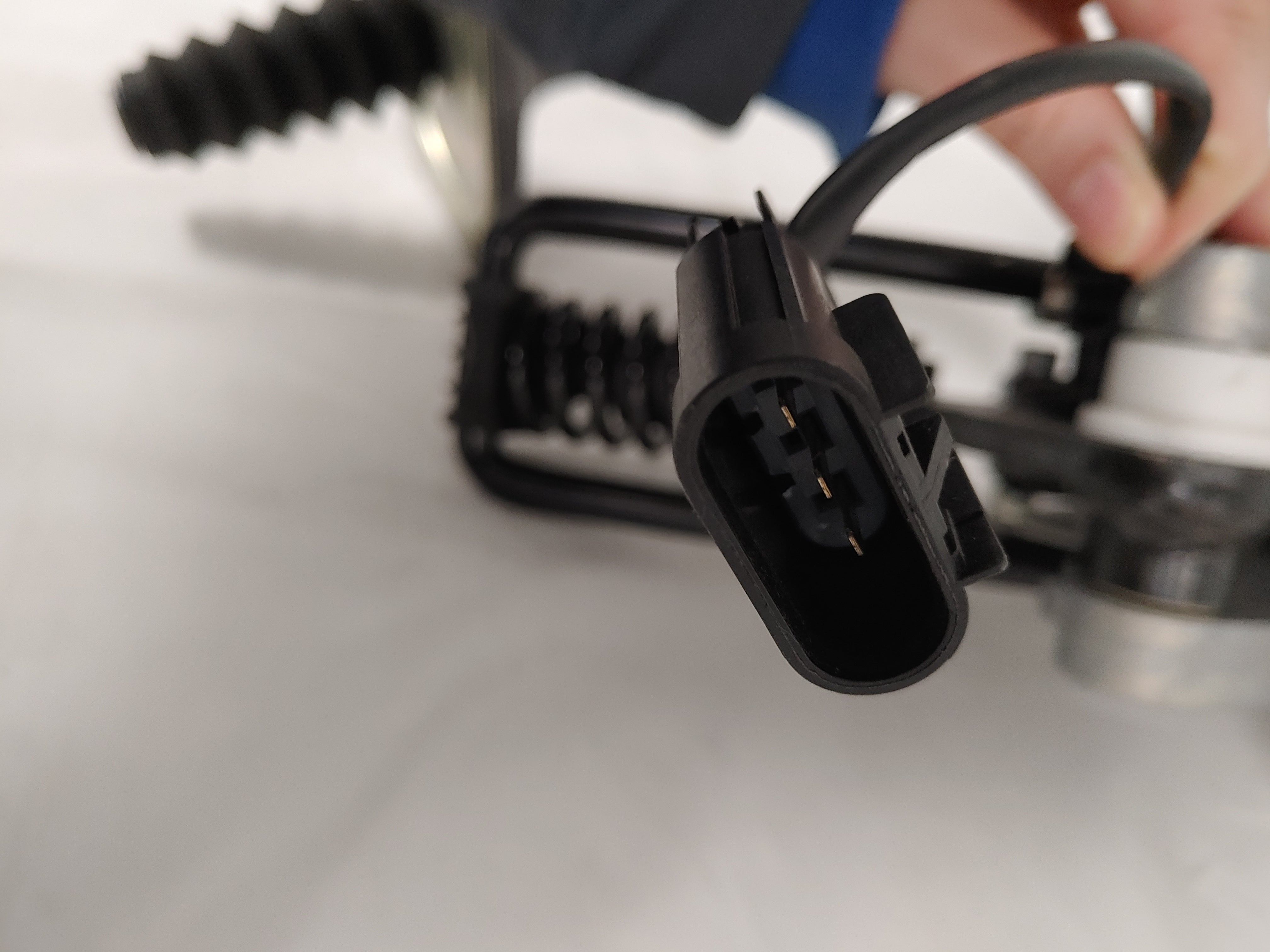

    • Electrical Connection: TYCO C-114-18740-1 Rev "D"
    • Port 11, 12 & 22 Threads: Voss 232 NG8
    • Port 2 Threads: M14 x 1.5
    • Port 21 Threads: Voss 230 NGB
    • Port 3 Threads: Integrated Silencer
    • Stroke: 3.35" / 5.31"
    • Temperature Range: -31° to +158° F
    • Voltage: 24V
  • Clutch Only Cross Reference P/N's: Kenworth S9650010580, Mack 6300-9650010580, Meritor S9650010580, Peterbilt S9650010580, Volvo WAB9650010580

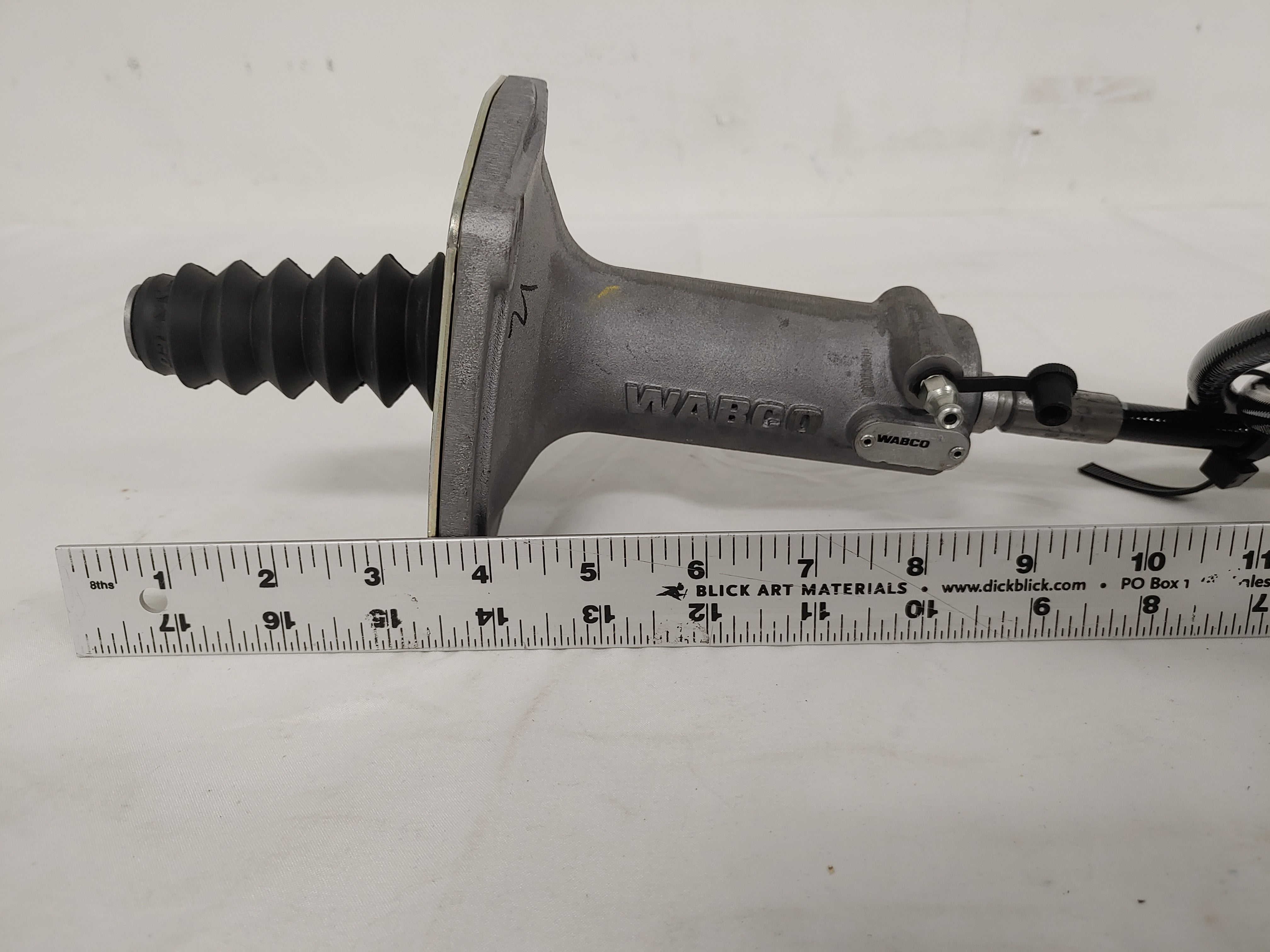

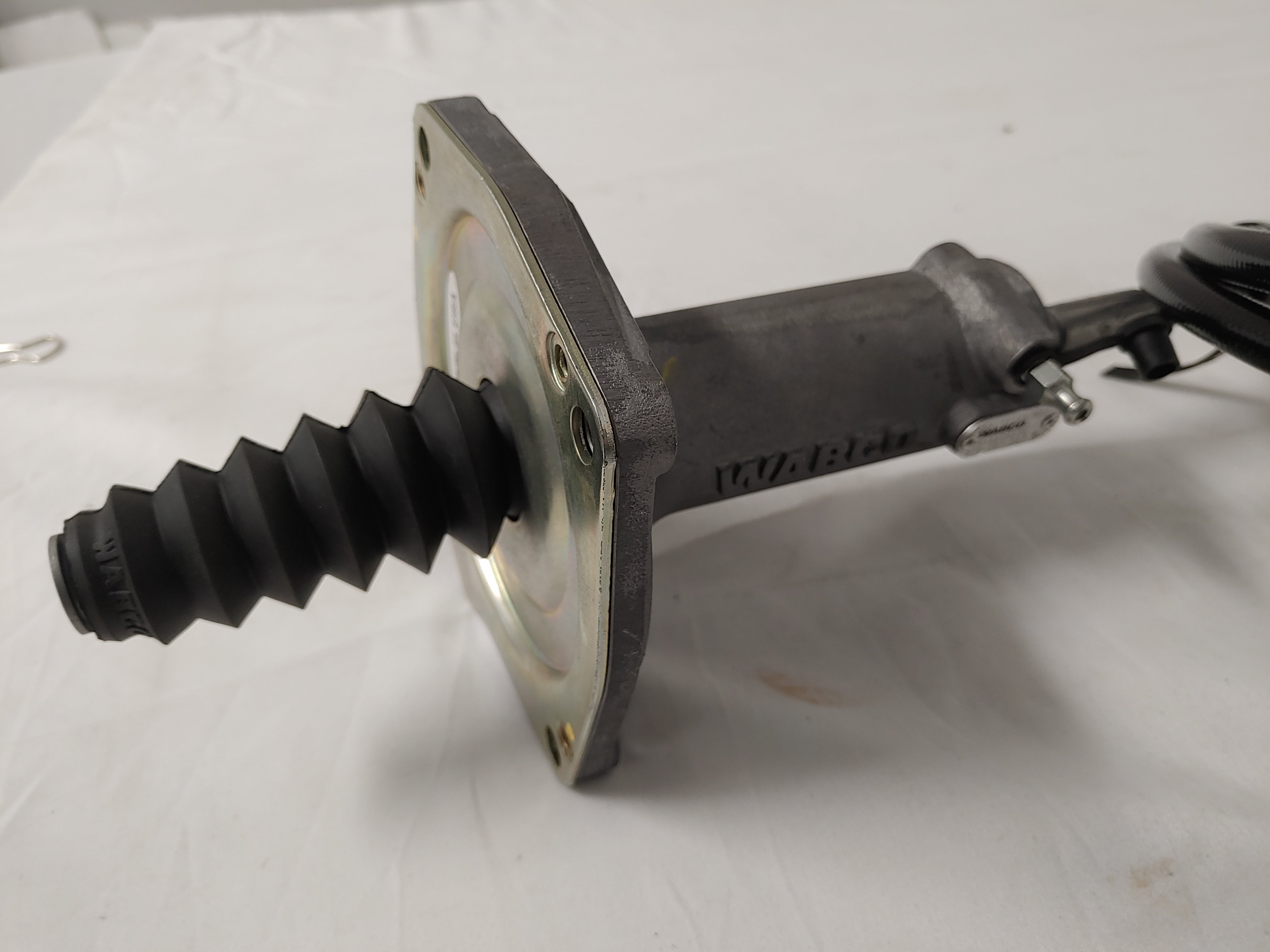

  • Slave Specifications:
    • Max Operating Pressure: 1450.4 psi
    • Medium: Brake Fluid SAE J 1703
    • Mounting: 4x Ø 9.0 mm
    • Port 32 Threads: M7 x 1
    • Push-Rod Threads: Ball R6
    • Stroke: 2.10"
    • Temperature Range: -40° - 176° F
  • Slave Only Cross Reference P/N's: Freightliner TDAS9700515030, Kenworth S970-051-503-0, Mack 8235-S9700515030 & 6300-9700515030, Meritor S9700515030, Navistar S9700515030 & ZDRS9700515030, Peterbilt S970-051-503-0, Volvo TDA S9700515030 & WAB9700515030
  • May Have Cosmetic Blemishes

  • See Photos For More Details

Item / Product Condition

A =  New - A brand-new in box or out of box undamaged item with no defects, in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer or us in non-retail packaging, such as an unprinted box or plastic bag. Green label on photos marked "New"


B = New Other - A new, unused item with no signs of wear. The item may be open box, new out of box, new take off, missing the original packaging, or in the original packaging but not sealed. The item may be a factory second, or a new, unused item with defects (scratches, dings, scuffs, cosmetic blemishes, etc...). See the listing for full details and description of any imperfections. Yellow label on photos marked "New Blemished"

C = Used - An item that has been used previously, or listed as a Used New Take Off. The item may have some signs of wear, but is fully operational and functions as intended. See the listing for full details and description of any imperfections. Blue label on photos marked "Used"

D = New Other Damaged - A new or used damaged item with no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects (broken, chipped, cracked, etc...). See the listing for full details and description of any imperfections.  Orange label on photos marked "New Damaged"

P = For Parts or Not Working - An item that does not function as intended and is not fully operational. This includes items that are defective in ways that render them difficult to use, items that require service or repair, or items missing essential components. See the listing for full details. Red label on photos marked "Parts Only"
